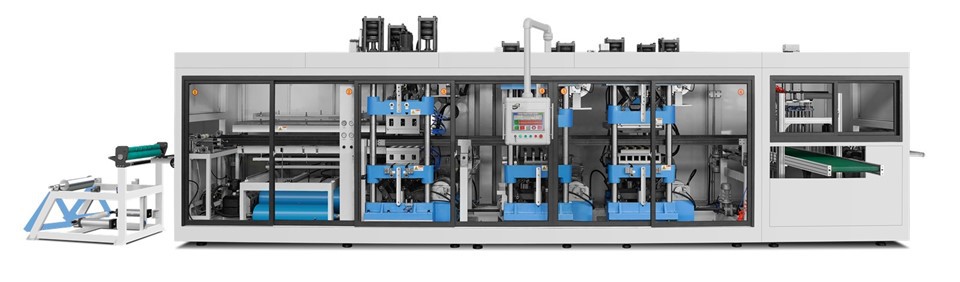

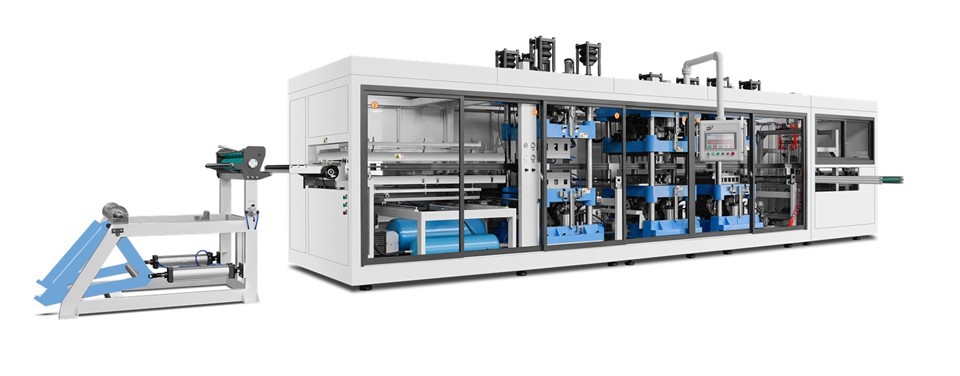

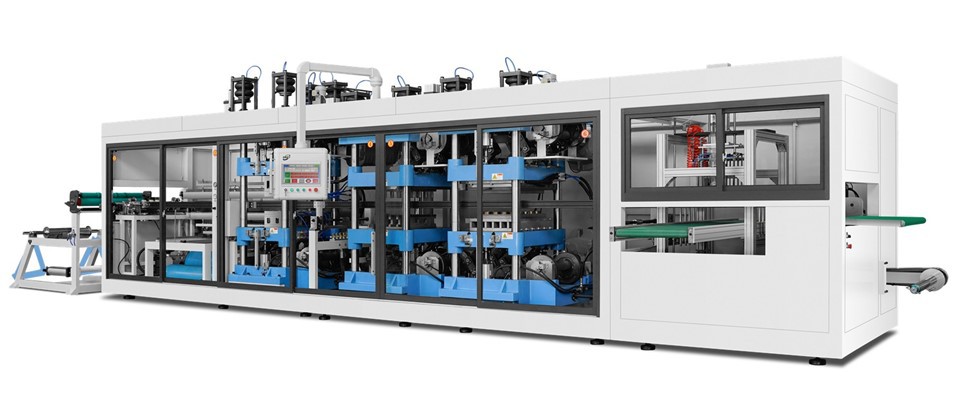

4-station Thermoforming Machine

Four-Station Thermoforming Machine is designed to handle feeding, heating, stretching, forming, punching, cutting, and stacking in one continuous processes with advanced temperature control, high versatility, easy adjustment, low noise, and stable long-term performance. Thermoforming machine is equipped with an intuitive operation interface, which is easy to operate and easy to learn, reducing staff training costs and production error rates.

The machine features an advanced heating system with the latest German temperature control technology, achieving approximately 23% energy savings. This ensures quick response times and short processing durations, resulting in high efficiency and low costs. The fully automatic functionality provides broad applicability, smooth operation, high yield, and low noise. This system significantly enhances production efficiency and reduces production costs.

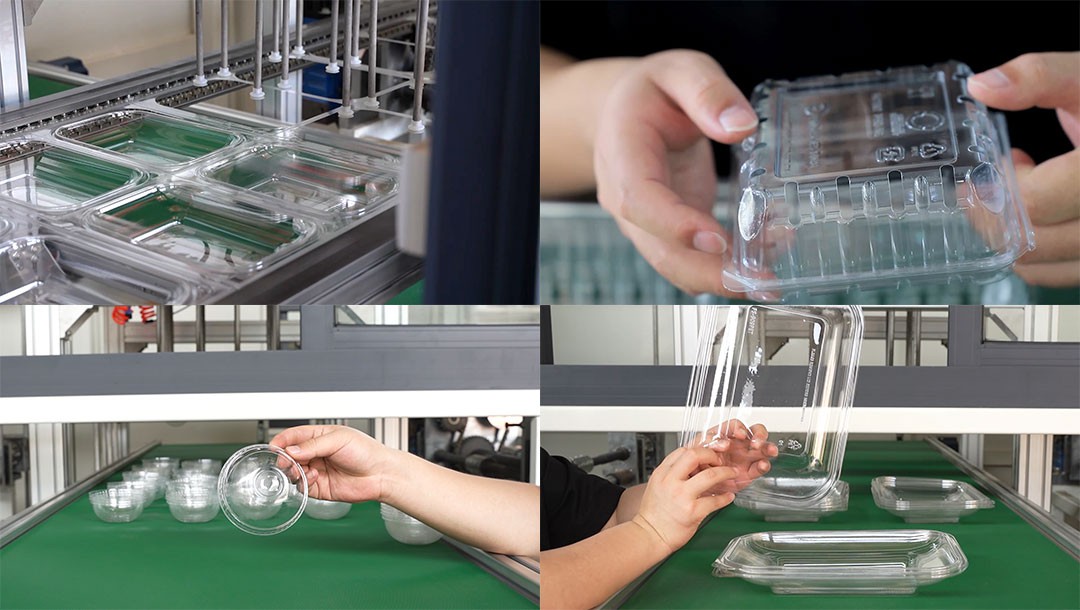

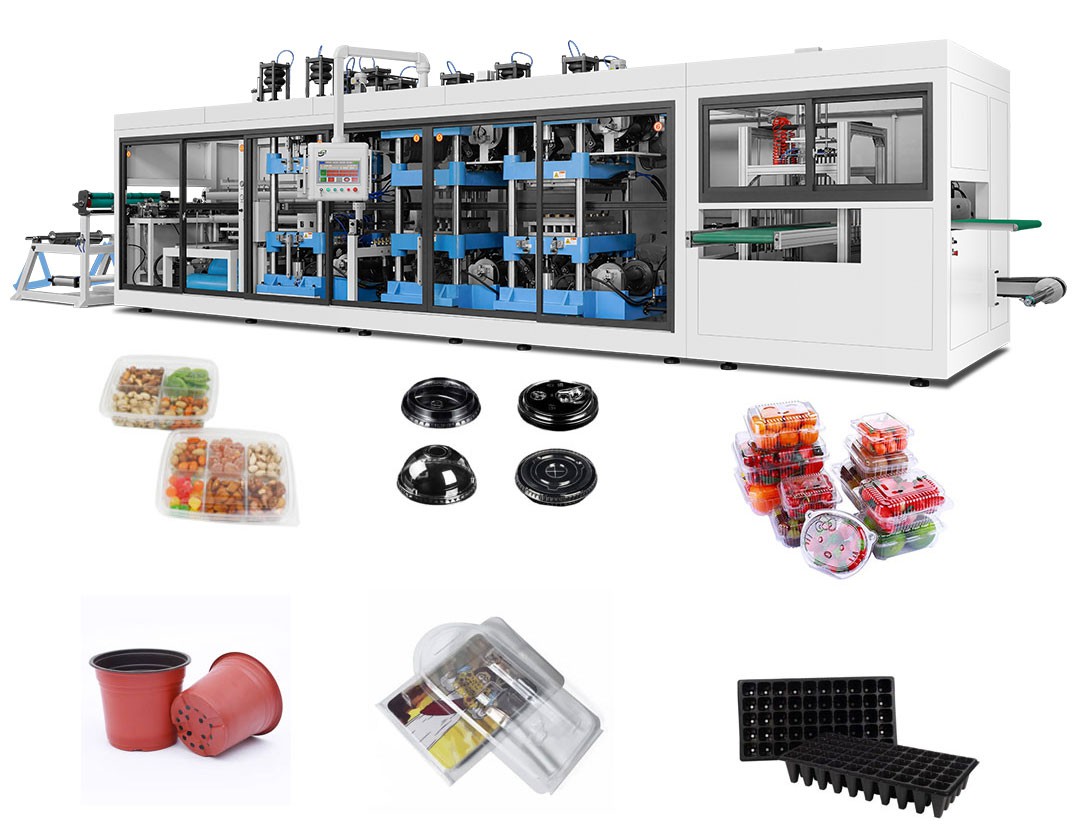

Four Stations Thermoforming Machine Mainly for the production of variety plastic containers with thermoplastic sheets, such as PP,APET, PS, PVC, EPS, OPS, PEEK, PLA, CPET,etc. It's an efficient production equipment that can be used to produce disposable plastic fruit boxes, flower pots, coffee cup lids and domed lids with holes, etc. The equipment is equipped with a quick mold change system and has the advantage of a customized heating box design. This equipment adopts positive and negative pressure thermoforming technology to process the plastic sheet into the required shape, size and corresponding punching design by heating the plastic sheet and compressing the positive and negative pressure gas. This equipment has four sets of workstations for forming, hole punching, edge punching, and stacking and palletizing, which can meet the needs of different industries and ensure the quality and consistency of products.

1.Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.

2. Plastic container making machine thermoforming machine: Pressure And/Or Vacuum forming.

3. Upper and down mould forming.

4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.

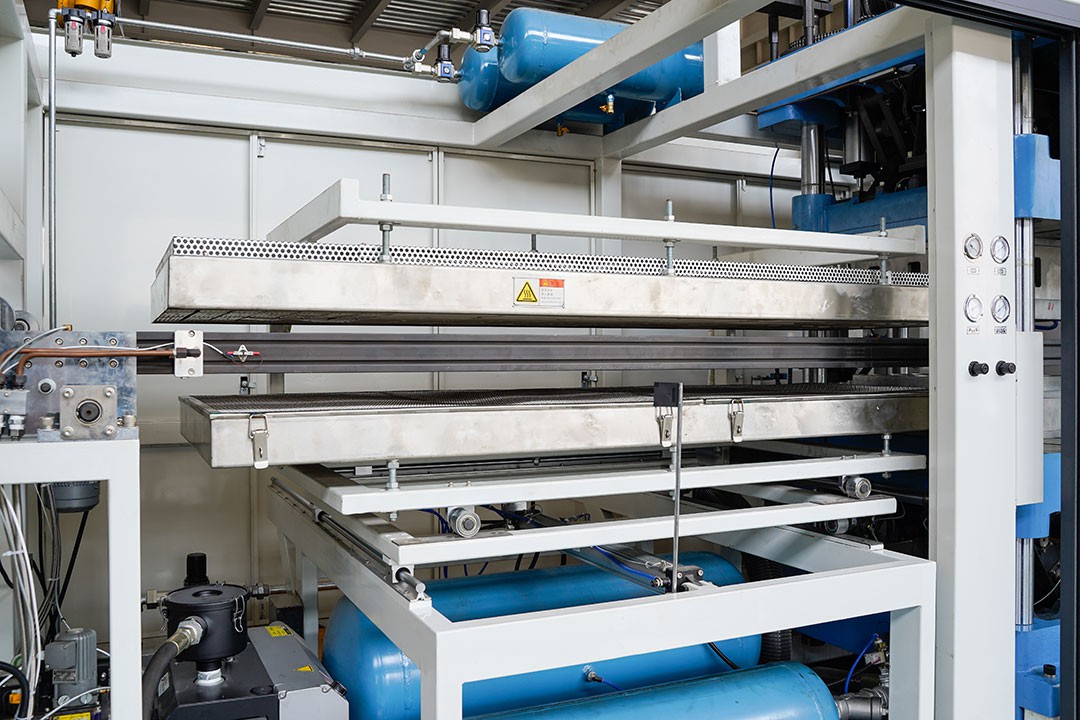

5. Upper & lower heater, four sections heating.

6. Heater with intellectual temperature control system,which has high precision, uniform temperature, won't

be effected by outer voltage. Low power consumption (energy saving 15%), ensure the longer service life of heating furnace.

7. The molds of forming, cutting and punching controlled by servo motor, products automatically count.

8. Products be stacked downward.

9. Data memorization function.

10.Feeding width can be synchronously or independently adjusted in electrical way.

11.Heater will automatically push-out when the sheet is over.

12.Auto roll sheet loading, reduce the working load.

13. Automatic control: The equipment adopts advanced automatic control system, which can precisely control parameters such as heating temperature, molding time and pressure to ensure the stability and consistency of the molding process.

14.Quick mold change: The 4-station thermoforming machine is equipped with a quick mold change system, which facilitates quick mold change and adapts to the production needs of different products, thereby improving the flexibility of production.

15. Energy-saving: The equipment adopts advanced energy-saving technology, which effectively reduces energy consumption, reduces production costs, and is environmentally friendly at the same time.

16. Easy to operate: The 4-station thermoforming machine is equipped with an intuitive operation interface, which is easy to operate and easy to learn, reducing staff training costs and production error rates.
